6050 lithium iron phosphate
Product characteristics
-
Resistance to vibration, drop and corrosion -
Magnification performance, high and low temperature performance
Detailed introduction
| The company's lithium-ion battery product is positioned as a mid-range customer in the market, and its main application areas include electric bicycles and electric power assisted bicycles; In the field of electric go karts. The primary technical requirement for batteries in this field is to have a certain discharge rate. Therefore, the current battery cells used include ternary cells and iron lithium cells, so that their product performance can better meet the needs of customers. | ||

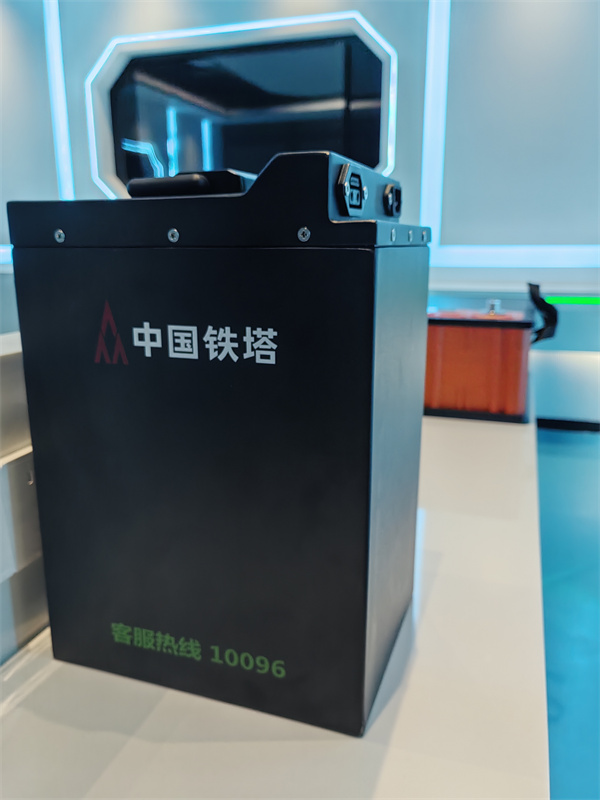

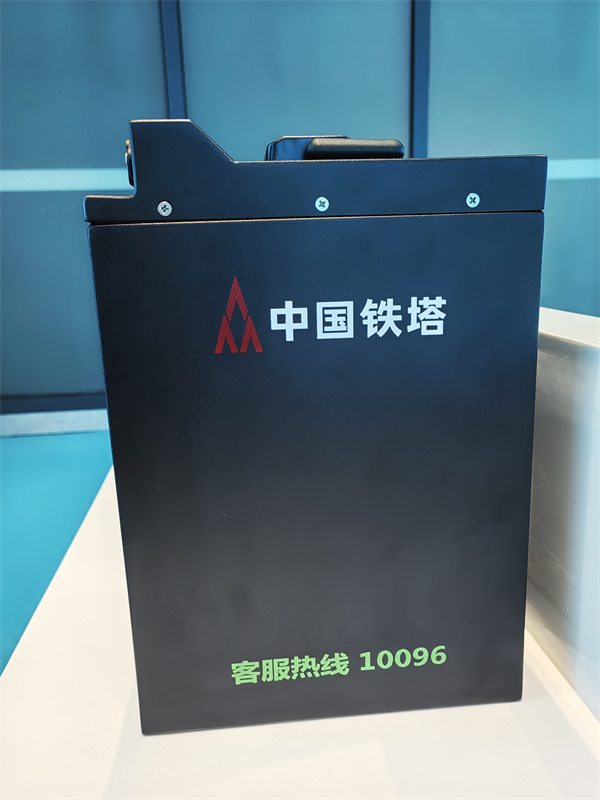

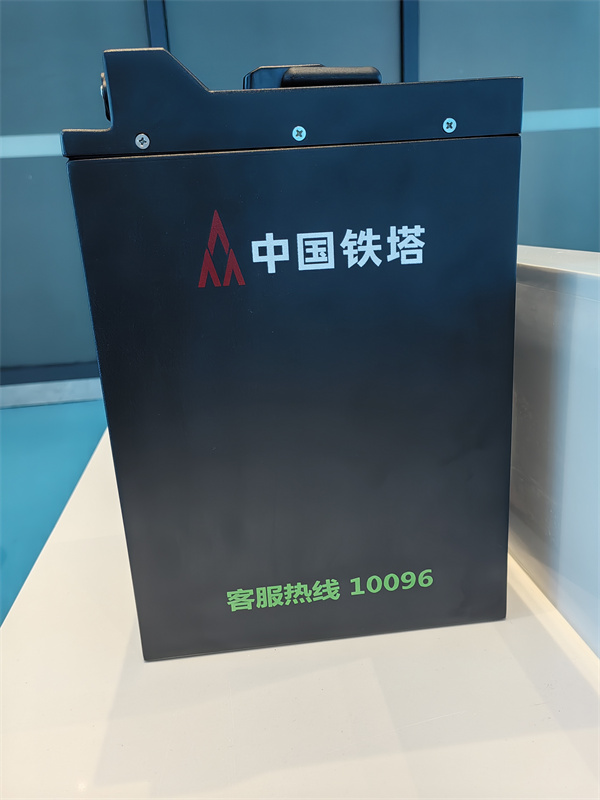

| Product Introduction of 6050 Lithium Iron Phosphate | ||
| Number | project | performance index |
| 1 | Cell | 11165260 iron lithium soft pack battery cell |
| 2 | Rated voltage | 64V |
| 3 | Rated capacity | 50Ah |
| 4 | Working voltage range | 50V~73V |
| 5 | Total energy | 3200Wh |
| 6 | working temperature | Charging at 0~45 ° C; Discharge -20~60 ° C |
| 7 | Charging and discharging efficiency | 95% |
| 8 | Continuous charging/discharging current | 46.875A |
| 9 | Instantaneous discharge current | 60A |
| 10 | Cooling method | Natural cooling |
| 11 | high resistance | ≤20mΏ |
| 12 | size | L240*W185*H350mm |
| 13 | Applicable to the motor power of two or three wheeled vehicles | ≤3000W |
| 14 | Charging for 9 hours can provide theoretical travel time | ≤70Km |
| 15 | One year warranty and two years maintenance | Water ingress and human damage are not within this range |
| 16 | Suitable for lithium iron phosphate chargers | 73V5A |
| 17 | Product provision insurance | China Ping An |
| 18 | weight | ≤26Kg |
