60V20Ah lithium iron phosphate
Product characteristics
  • Resistance to vibration, drop and corrosion
  • Magnification performance, high and low temperature performance
Detailed introduction

The company's lithium-ion battery product is positioned as a mid-range customer in the market, and its main application areas include electric bicycles and electric power assisted bicycles; In the field of electric go karts. The primary technical requirement for batteries in this field is to have a certain discharge rate. Therefore, the current battery cells used include ternary cells and iron lithium cells, so that their product performance can better meet the needs of customers.


6020Introduction to lithium iron phosphate products

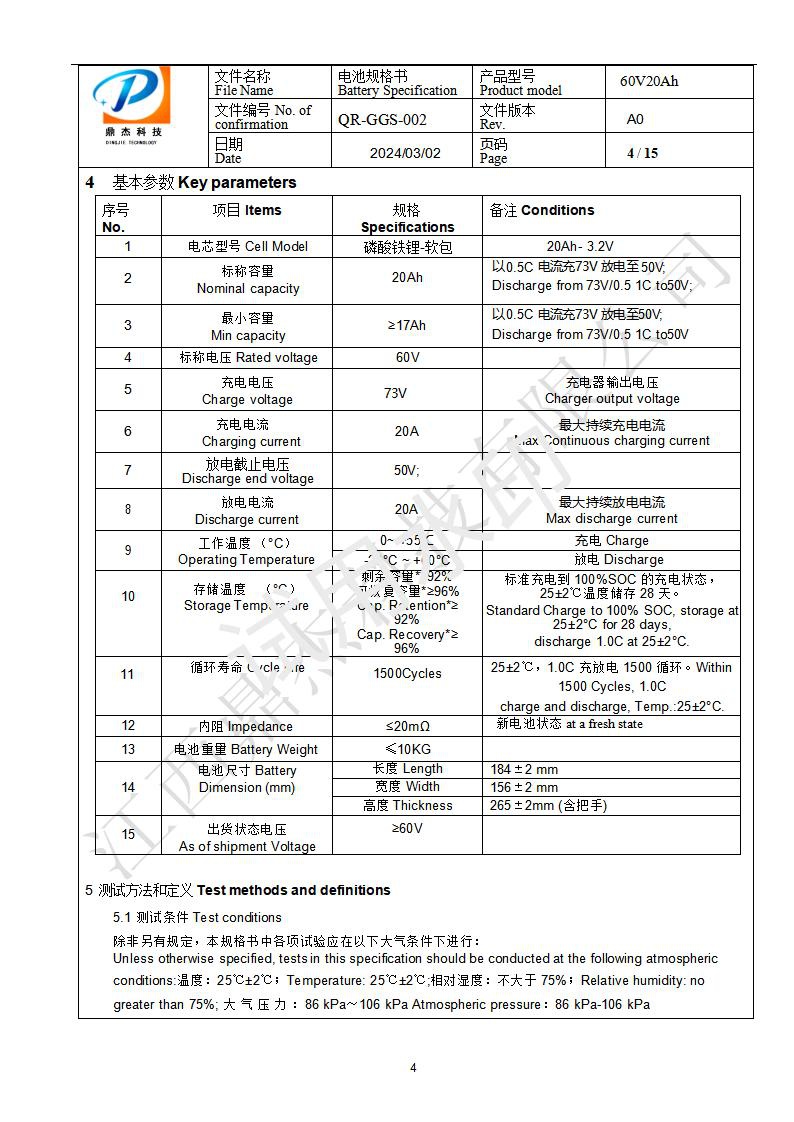

Numberprojectperformance index
1Cell78133202Iron lithium soft pack battery cells
2Rated voltage60V
3Rated capacity20Ah
4Working voltage range50V~73V
5Total energy1200Wh
6working temperature Charging at 0~45 ° C; Discharge -20~60 ° C
7Charging and discharging efficiency95%
8Continuous charging/discharging current20A
9Instantaneous discharge current60A
10Cooling methodNatural cooling
11high resistance ≤20mΏ
12sizeL184*W156*H265mm
13Applicable motor power for two wheeled vehicles≤600W
14Theoretical itinerary≤50Km
13weight≤10Kg
